Portable Relay Tester / Relay Test Set / Secondary Current Injection test set

Portable relay tester / Relay Test Set / Secondary Current Injection test set manufactured and exported by Ajit Electronic Corporation. Operating time of the protective relays can be checked & verified using these sets.

These relay test sets are especially designed to make the kits portable, light weight and easy to carry from site to site.

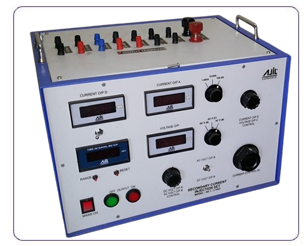

Portable Relay Test Sets
Features
• Potential-free start and stop signal
• Continuously adjustable output, AC Amp. and AC volts
• Auto cut-off and output isolated
• Portable model
• Self sensing of contacts, i. e. NO / NC
• Digital ammeter and voltmeter
• Timer automatically puts OFF the output, when timer reaches to its    maximum value of the selected range to ensure safety of the instrument as    well as the item under test
• Wide range of measurement, i. e. from I millisecond. to 9999 secs

Application:

The protective devices such as relays, overload coils, circuit breakers must be checked regularly to ensure that, they are always ready to operate correctly. If a fault occurs in the equipment, which they are protecting, routine relay testing will quickly detect the faulty, incorrectly adjusted protection circuit and will possibly prevent serious damage to plant or injury to personnel. Apart from checking the protective circuits correctly, it is usually necessary to measure its operating time. The micro controller based time interval meter is used for this purpose in all AJIT brand relay tester.


Technical Specifications :
Input supply :  230V, AC, ±10 %, single phase.
Metering : a) 3 ½ digit, ammeter / voltmeter
b) 4 digit micro controller based time interval meter.
Range : 0-9.999-99.99-999.9-9999 sec.
Display : LED type
Protection : Fuse / MCB, Over current protection


Model

AC current o/p I

AC current o/p II

AC Voltage o/p

DC Voltage o/p

Aux. voltage

RTS 1

0 -1A – 5 A

--

250 V

--

250 V

RTS 25

0 – 2.5A -25A

--

--

--

250 V

RTS 25 AV

0 – 2.5A -25A

--

250 V

--

250 V

RTS 50

0 – 1A-10A-50A

--

250 V

250 V

250 V

AE 1 500 VA

0 – 1A-10A-100A

--

250 V

--

250 V

AE 1-2 VAD

0 – 1A-10A-100A

0 – 10A

250 V

250 V

250 V

AE 2 AVD

0 – 1A-10A-200A

--

250 V

250 V

250 V

AE 1 500 VAD

0 – 1A-10A-100A

--

250 V

250V

250 V

AE 100 Automatic With CT test function and built in printer

0 – 1A-10A-100A

--

500V

300V

250 V
