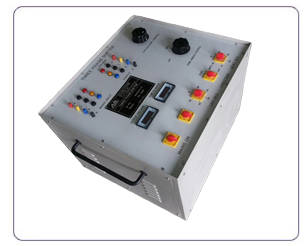

Three phase shifter/ Phase Shifter/ Phantom Load Tester

Three phase shifter/ Phase Shifter/ Phantom Load Tester are manufactured and exported by Ajit Electronic Corporation. The instruments are used to test synchronising relays as well as energy meter This instrument is capable of producing 3 Phase AC voltage with phase shifting arrangement between the phases simultaneously.

We AJIT ELECTRONICS CORPORATION are Manufacturers, Exporters & Leading Suppliers of 3 Phase Shifter Loacated in Dombivli, Thane, Mumbai, India.

This instrument is capable of producing 3 Phase AC voltage with phase shifting arrangement between the phases simultaneously.



1

Voltage output




Range

:

0 to 415V ph-ph. Variable.

  Measurement : 3 digit Digital voltmeter with selector switch.
  Total Capacity : As per the customer’s requirement.
  Phase Shift : 0 – 180 Degree settable.
  Phase angle setting : Coarse control : A rotary switch will be provided to select the phase angle in Lead or Lag in steps of
15 degree.
Fine control : Every one degree between the selected step can be set by a dimmer stat provided. Lead Lag Selector : A rotary selector switch will be provided to select Lead, Lag and Unity of phase.
  Measurement : Phase Angle meter.
2

Protection

:

Rocker s/w or MCB in the input of supply.

      Fuse protection in the output.
3

Power Supply

:

Three phase, 415V AC 50 Hz, 120 degree apart.

4

Cabinet

:

Powder coated sheet metal cabinet.
